Amplla Fire Combo

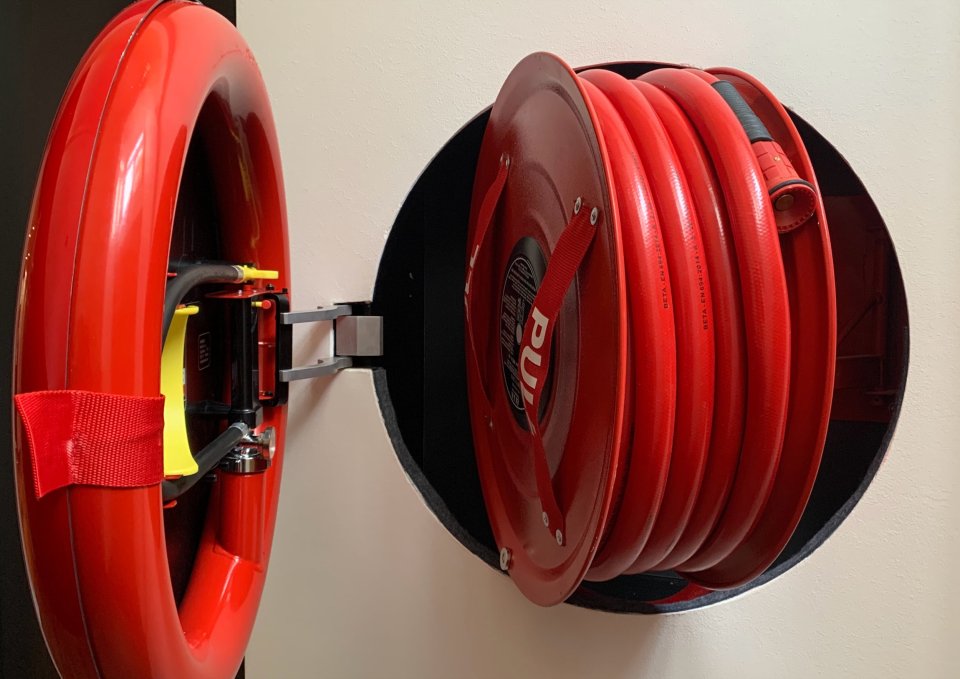

The cabinet door is a fully fledged Amplla Shield fire extinguisher, and behind it waits an EN 671-1 hydrant reel with a 30 m hose. One motion and you have both: a portable extinguisher in your hand and a continuous stream of water from the hydrant.
Two live inside: a hydrant hose for the big fire, and a Shield on its hook for the one you want to stop before it earns a name. One grab, two answers — certified to EN 671-1 and EN3-7. Fire Combo is a building's entire fire safety in one place — offices, apartment-block stairwells, commercial premises — that no one has to hide.
View in 3D
Tap to rotate the device and view it from every angle.
Want to see it in your own room?
- Pick up your phone or tablet.
- Open this page on it.
- Tap “Try it on your wall”.
Parts overview
TECHNICAL SPECIFICATION
TI62P4VSS / TI62P6VSS
TI62P4VSS: 21A, 113B, C / TI62P6VSS: 34A, 183B, C
ZH3025 (BETA-02)
DN25 spray nozzle
semi-rigid, swing-mounted
30 m
25 mm, 8 mm nozzle orifice
580 × 600 × 210 mm
2 to 12 bar (4 bar recommended)
EN 671-1:2012, certificate 1038Xa/02
WBC7128
710 × 710 × 300 mm
26 mm
1 mm galvanised structural steel, 10 mm cement-bonded particle board at the back, steel/dural hinge
Certificates and declarations of conformity for individual countries are available on the Certifications page.
3D and 2D models for design software
Models of extinguishers and mounts to download for architects and designers. Formats for the usual design packages, free and without registration.
View 2D and 3D models
